TV Logic LVM-170A 17″ Monitor

In a nutshell

Keep the director or client quiet & happy with their own 17″ monitor. Our TV Logic LVM-170A 17″ Monitors have been assisting with this task for years.

Category:

The technical lowdown

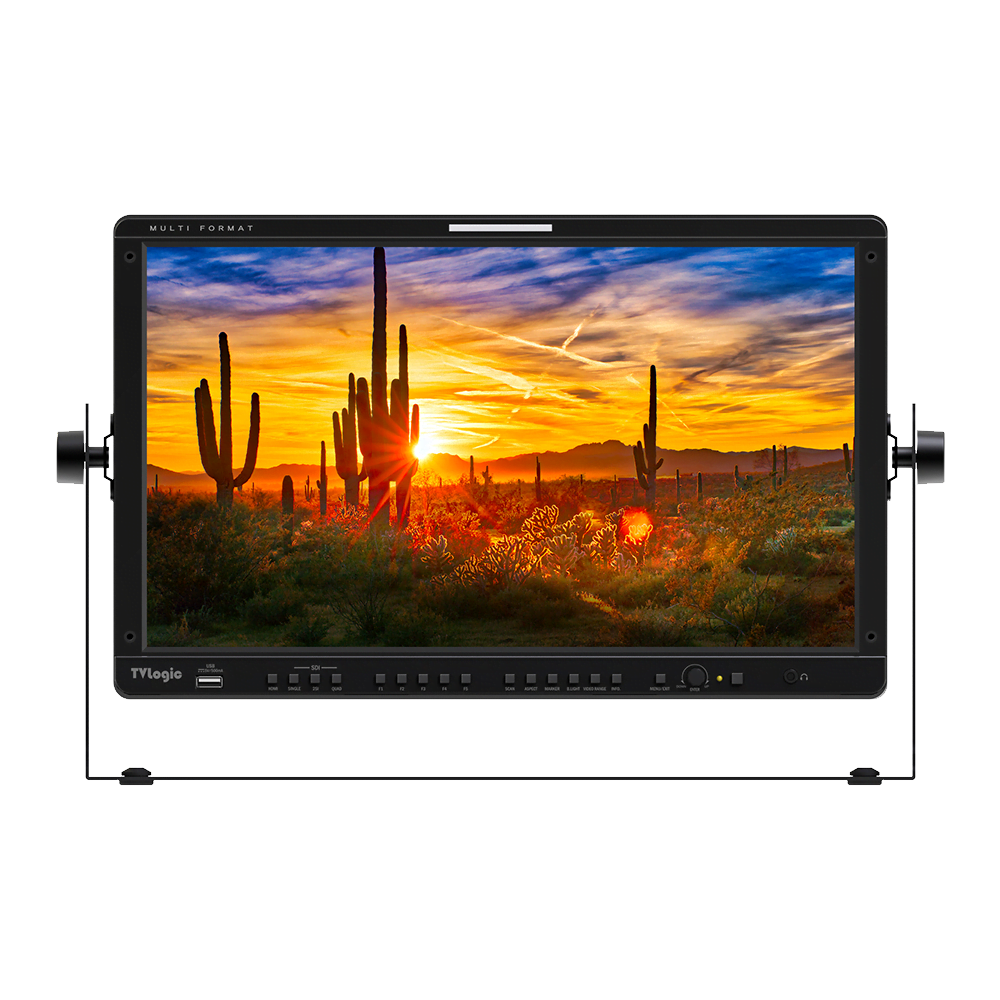

The LVM-170A 17″ Full HD SD/HD/3G-SDI Multi-Format Monitor from TVLogic supports multi-format analog, 3G/HD/SD-SDI, DVI, and HDMI signal inputs. It features a true 16:9 aspect ratio LCD panel with 12-bit video processing performance allowing for accurate reproduction of interlaced video and scaling performance.

3G-SDI Level A

Supports 3G-SDI Level A/B input.

Audio Level Meter Display

Displays the level of the embedded sound signal together with the video signal input through the terminal such as SDI or HDMI.

Blue Only / Mono

Red and Green channels are not used and only Blue or Monochrome channel is used to display the screen. This function is used to adjust the color tones (tones and saturation) of the screen using the SMPTE Color Bar. For example, after displaying the Blue channel, adjust the Color (or Saturation) and Tint (or Hue) so that the original Magenta and Cyan are of the same brightness, and the original Gray and Blue are of the same brightness.

Focus Assist

Assigns a color to the pixels on the boundaries of the image to inform the user to achieve the best focus. With this function, user can easily differentiate the focused area from out-focused area especially when shooting with a shallow depth of field.

Marker

Displays various kinds of aspect ratios on the screen. Wide range of markers and security areas are available with line color and curtain transparency selection. A User Marker is available if any of standard markers fits your requirements.

Various Scan Modes

Controls the size of the image. Overscan: Extra area around the four edges of the image that may not be seen reliably by the viewer. Underscan: Constrains the size of the image so the monitor shows everything the camera is seeing. 1:1 pixel: Displays the original image resolution without scaling to match a certain resolution or an aspect ratio.

Waveform/Vector Scope

Waveform Y: Displays the Luma(Y’), Cb, Cr component of the input signal into waveform.
Vector Scope: Displays the color components ‘B-Y’ and ‘R-Y’of the input signals onto the X-Y axis.

Additional information

Size

17.3"
Main Body- 421.5 x 426 x 74.1 mm
With Stand- 483.5 x 310.3 x 137.5 mm

Weight

4.2kg

Resolution

1920 X 1080 (16 : 9)

Pixel Pitch

0.199mm

Colour Depth

16.7M

Input

1 X BNC- Analog Input (Composite)
2 X BNC- 3G-SDI A/B Channel Input
1 X HDMI- HDMI Input
1 X DVI- DVI Input

Output

1 X BNC- Analog Output (Composite)
1 X BNC- 3G-SDI Output
