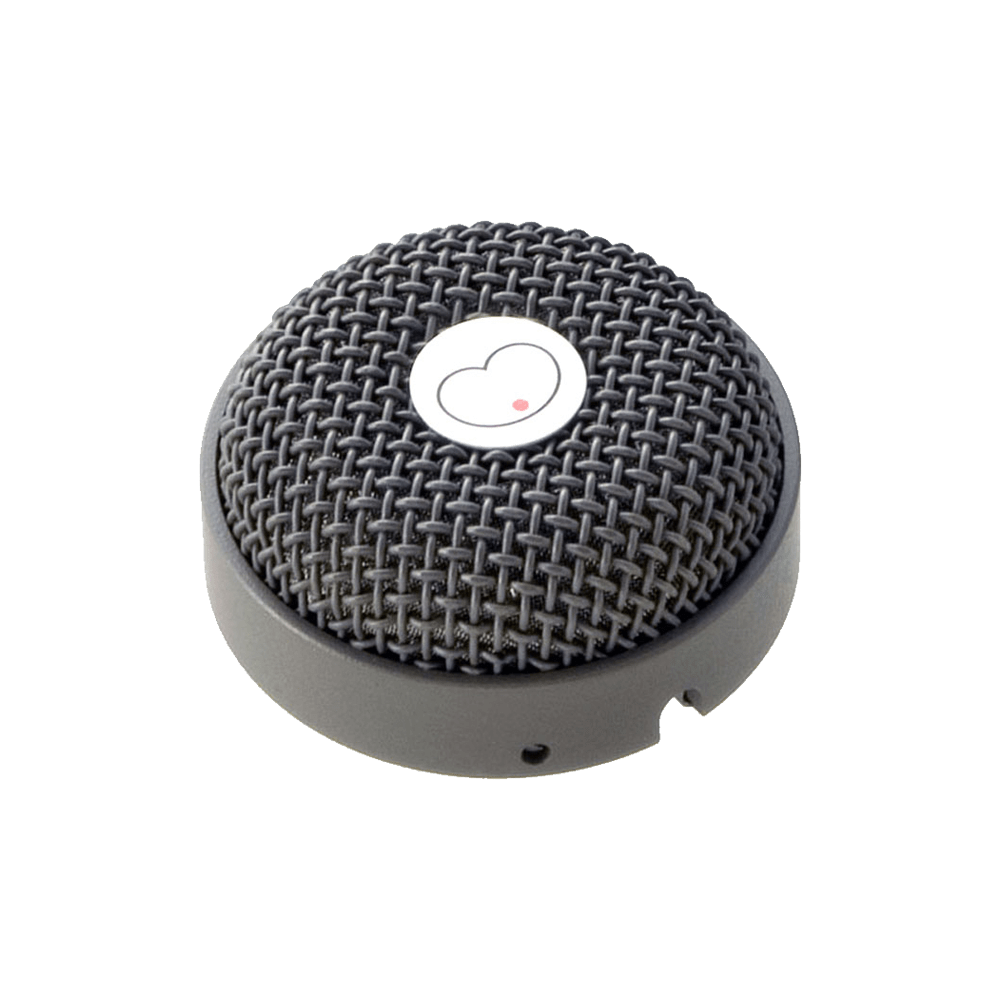

Sanken CUB-01 Minature Boundary Mic

Sanken CUB-01 Boundary Microphone for hire from Mad Dogs Television

In a nutshell

Most boundary microphones exhibit similar sound characteristics, often described as “thin,” “solid,” and “metallic.” Sanken has addressed this issue with the CUB-01, leveraging advanced technology and a unique square-shaped cardioid capsule. This proprietary design significantly expands the diaphragm’s effective area, producing a boundary microphone with rich, natural sound and a flat response down to 70Hz.

Category: Audio

The technical lowdown

Introducing a revolutionary design, the Sanken CUB-01 overcomes the limitations of previous boundary microphones, delivering incredibly rich and full-bodied sound in a compact size. Despite its small dimensions (1.26″ diameter, 0.5″ height) and lightweight build (only 1.6 oz), it outperforms much larger boundary microphones in sound quality.

The CUB-01 is perfect for various settings such as film and television production, both on set and on location, conference rooms, or podiums. It’s especially effective in automobiles, making it a favorite among production professionals.

Specifications

Clear and rich sound
Small and easy to conceal unlike other boundary mics
Wide 60Hz-16kHz frequency response
Sound energy in the high frequencies is identical with the mid and lows
Perfect for TV and film field shooting, broadcast studio production and conference table recording
New Sanken design that overcomes the limitations of previous boundary microphones

Additional information

Transducer	Back electret condenser
Directivity	Cardioid/front side of hemisphere
Frequency response	60Hz – 15kHz
Powering	48V ±4V phantom (U.P.F)
Weight	45g (1.6oz) (microphone) 55g (1.9oz) (Phantom I/F Part)
Connector	XLR3
