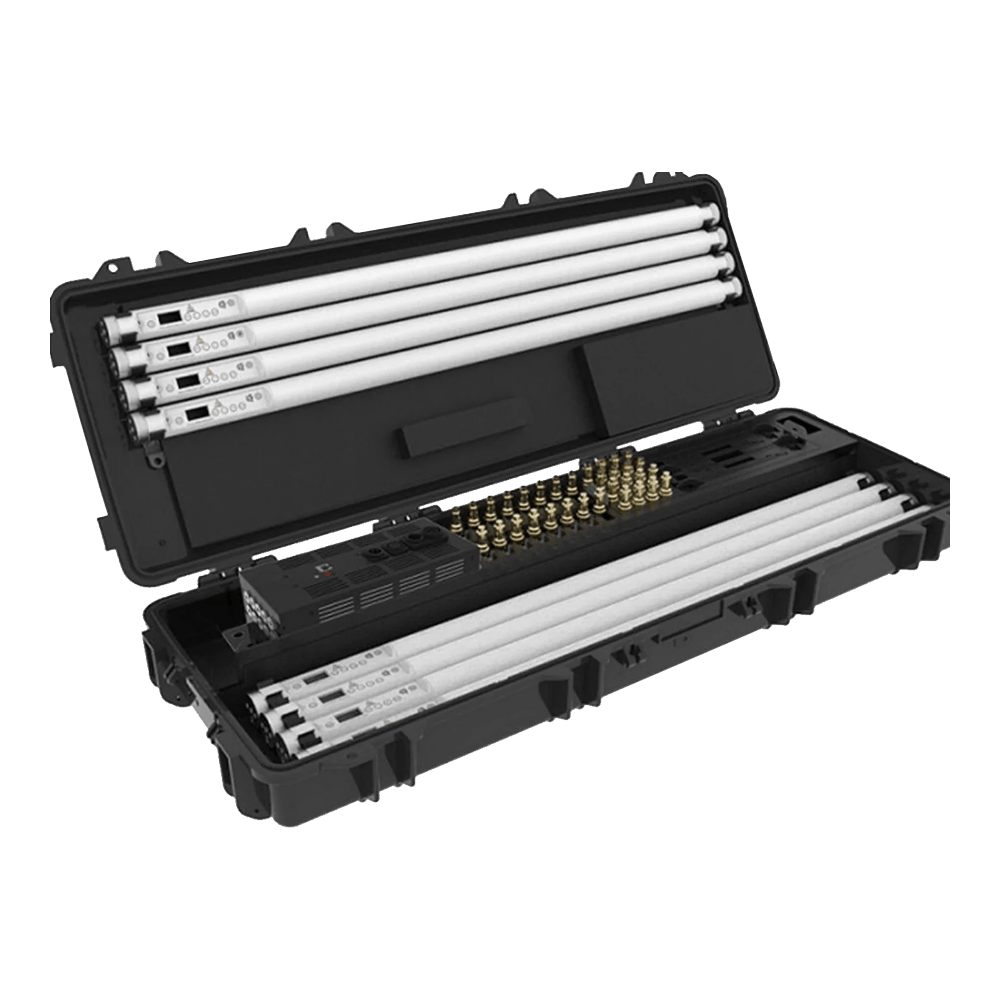

Astera Titan Tube Set with ART7

In a nutshell

One of the most versatile Film Lighting Tubes on the market. The Titan Tube was especially designed for the Film, Broadcasting and Cinema industries, optimized for an ultra-high TLCI, a very high CRI and peak brightness, colours as well as Hue, Saturation and Intensity can be set directly on the tube. In addition, the Titan Tube now accepts wired DMX via a special power/data combination cable.



Just try and resist the temptaion to hold them like lightsabers!

Category:

The technical lowdown

Astera System

A smart control system of your Film Lighting Tube, where Infrared remote, wireless DMX and app work together to enable big setups that can be set up, monitored and adjusted in a fast and convenient way.

Control Lights

Create complex programs out of colours, effects, and settings. The Titan Tube will remember and repeat these effects without requiring a constant wireless link.

Quickly create groups of lights, assign positions and select which the Film Lighting Tube should receive commands.

Monitor Lights

Keep a complete overview of the status and all settings of your PixelTube while you operate them. View battery status, radio signal, DMX address and which lights you have targeted.

Diagnose individual Titan Tube or Astera Event Spotlights and even get informed if a light is being moved or switched off.

This works while you control lights by the app but also if Titan Tubes are controlled via DMX.

Set-Up Faster

Set up your Film Lighting Tube conveniently out of the distance. Set DMX address and DMX footprint for one or several Titan Tube or Wireless Event Spotlights; 50 units can be prepared in less than 5 minutes out of the distance.

After your job, do a quick master reset of all settings or a partial one of only selected settings.

Compatibility

Titan Tube carries the most reliable wireless DMX module on the market compatible with CRMX and other wireless DMX standards but not W-DMX G5 and City Theatrical.

Seamless Runtime

To ensure that your light’s batteries last throughout your entire production, you can select how many hours they have to last. This limits the light’s output to a level where you get the maximum brightness to achieve the selected runtime.

Effects

Quickly build programs out of colors and effects, trigger them or make them match a beat. Turn multiple programs and lights into scenes.

Talkback+

Detect all available lights, set them up, check their status, configure DMX addresses and DMX profiles.

Additional information

Dimensions

Ø42 mm x 1035 mm, Ø1.6” x H40.7”

LED Engine

Titan LED Engine (RGBMintAmber)

Total LED Power

72 W

LED Power Draw

48 W

Light Output

2900 lm

Pixels

16
